제품 상세 정보:
결제 및 배송 조건:
|
| Products name: | 2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply | Application: | Car Battery & Power Supply |
|---|---|---|---|
| Continuos Use Temp: | -45℃ to 200℃ | Density: | 3.0g/cc |
| Hardness: | 13 Shore 00 | Color: | Blue |
| Thermal conductivity& Compostion: | 2.6W/m-K | Thickness: | 0.02inch/(0.5mmT) |
| Construction: | Ceramic filled silicone elastomer | Keywords: | Thermal Pad |

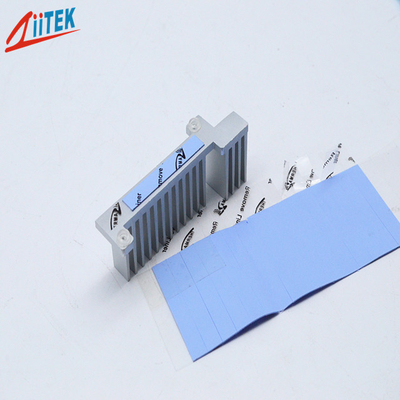

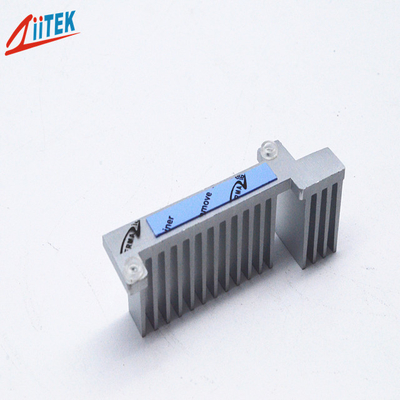

2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply
TIFTM520BS thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features:
> Good thermal conductive : 2.6W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the
> chassis of frame
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
| Typical Properties of TIFTM520BS | ||
| Color | Blue | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ******* |
| Density | 3.0g/cc | ASTM D297 |
| Thickness range | 0.02inch /(0.5mmT) | ASTM C351 |
| Hardness | 13 Shore 00 | ASTM 2240 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D412 |
| Operating Temp | -45 ~200℃ | ******* |
| Dielectric Constant | 5.0 MHz | ASTM D150 |
| Volume Resistivity | ≥2.0X1013Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 2.6W/mK | ASTM D5470 |
Product Specifications
Standard Thickness:
0.02 to 0.20 (0.50 to 5.00 mm) with increments of 0.01 (0.25 mm).
Standard Size:
8"X16"(203 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.50 mm).
The TIF series is available in custom shapes and various forms.
For other thicknesses or moreinformation. please contact us.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
