제품 상세 정보:
결제 및 배송 조건:
|
| 생산품명: | 자가 접착 열 갭 패드 0.3mm ~ 5.0mm 두께 6.0W/M · K 실리콘 열 패드 | 단단함: | 50 버팀목 00 |
|---|---|---|---|
| 색상: | 회색 | 열 conductivity& 퇴비: | 6.0W/m-K |
| 비중: | 3.3g/cc | 두께: | 0.012 "(0.30mm) ~ 0.200"(5.00mm) |
| 건설: | 세라믹 충전 실리콘 엘라스토머 | 통주 저음은 임시를 사용합니다: | -45℃~200℃ |
| 적용: | 노트북 히트 싱크 CPU GPU SSD IC LED Cooler | 키워드: | 실리콘 써멀 패드 |
| 강조하다: | 0.3mm 열 간격 패드,6.0W/M·K 열 간격 패드,5.0mm 열 간격 패드 |
||

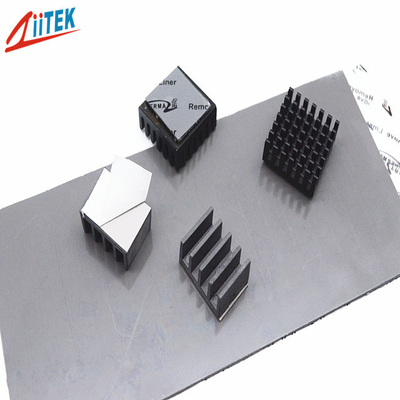

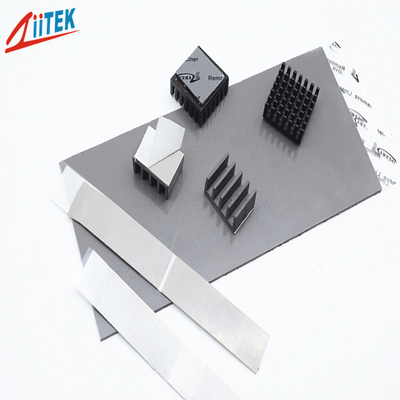

Self-Adhesive Thermal Gap Pad 0.3mm to 5.0mm Thick 6.0W/M·K Silicone Thermal Pad
TS-TIF®100C 6050-11 series is a silicone-based thermal material designed to fill the gaps between heat-generating components and liquid cooling plates or metal bases. lts flexibility and elasticity make it ideal for covering highly uneven surfaces. With excellent thermal conductivity, it efficiently transfers heat from heat-generating elements or PCBs to liquid cooling plates or metal heat dissipation structures,thereby improving the cooling efficiency of high-power electronic components and extending the lifespan of the equipment.
Features:
> Excellent thermal conductivity 5.0W/mK
> Self-adhesive without the need for additional surface adhesive
> Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
Applications:
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp
| Typical Properties of TS-TIF®100C 6050-11 Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.3g/cc | ASTM D297 |
| thickness | 0.012"(0.30mm)~0.200"(5.00mm) | ASTM D374 |
| Hardness (thickness＜1.0mm) | 50 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 7.0MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X10¹²Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 6.0W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
