| Product name: | Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices | Material: | Carbon Fiber Filled Silicone |
|---|---|---|---|
| Density: | 2.9g/cm³ | Thermal conductivity (Z Axis Direction): | 25.0W/m-K |
| Hardness: | 85±5 /60±10 Shore 00 | Application: | Wearable Devices |
| Color: | Gray | Keywords: | Carbon Fiber Thermal Pad |

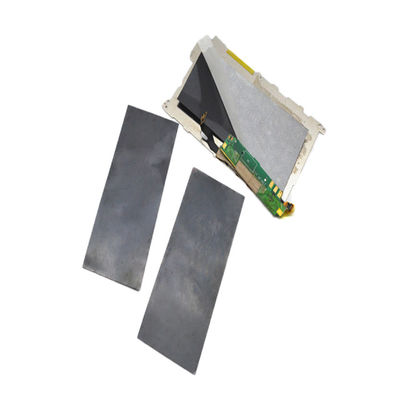

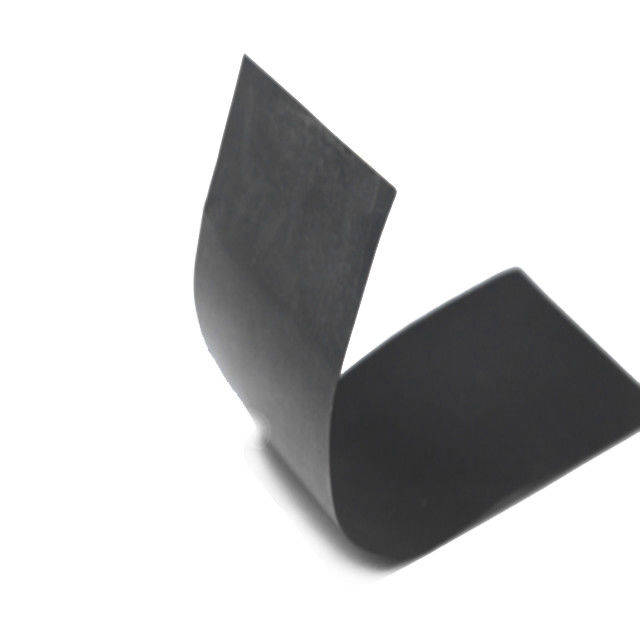

Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
TS-TIR®700-25 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.
Feature
> Good thermal conductivity 25w/mK
> Ultra-low thermal resistance
> works under low pressure.
> Non-insulating material
> Non-adhesive surface
Application
> Between chips and heat dissipation modules
> 5G communication equipment
> Optoelectronics industry
> Wearable devices
| Typical Properties of TIR®700-25 series | |||
| Product Name | TIR®700-25 | Test Method | |
| Colour | Gray | Visual | |
| Construction | Carbon fiber filled silicone | ***** | |
| Thickness range | 0.01"~0.02" (0.3~0.5 mm) | 0.04"~0.20"(1.0~5.0 mm) | ASTM D374 |
| Hardness | 85±5 Shore 00 | 60±10 Shore 00 | ASTM D2240 |
| Density | 2.9g/cm3 | ASTM D792 | |
| Operation Temperature | -40℃~ 200℃ | ****** | |
| Thermal impedance | 25.0W/m-K | ASTM D5470 | |
| Specific heat capacity (J/g ℃) | 0.75 | ASTM E1269 @25℃ | |
| Flame Rating | V-0 | UL94 | |
| RoHS | Compliant | IEC62321 | |
Product Specification
Standard Thickness:0.01" (0.3mm), 0.02"(0.5mm), 0.04"(1.0mm), 0.06" (1.5mm), 0.08" (2.0mm), 0.10" (2.5mm), 0.12" (3.0mm)
Standard Size: 1.97"×1.97"(50.0mm x 50.0mm)
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
