| Products name: | Cooling Gap Filler 2.0W Thermally Conductive Silicone Thermal Pad High Temperature Application | Thermal conductivity& Compostion: | 2.0W/m-K |
|---|---|---|---|
| Specific Gravity: | 2.7g/cc | Hardness: | 27±5 Shore 00 |
| Color: | Gray | Thickness: | 1.0mmT |
| Continuos Use Temp: | -40℃ to 200℃ | Application: | Electronic Equipment |
| Keywords: | Thermal Gap Filler | Construction: | Ceramic filled silicone elastomer |

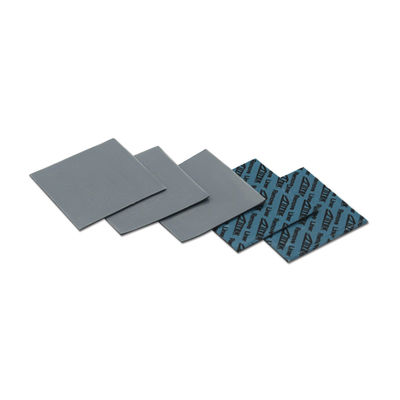

Cooling Gap Filler 2.0W Thermally Conductive Silicone Thermal Pad High Temperature Application

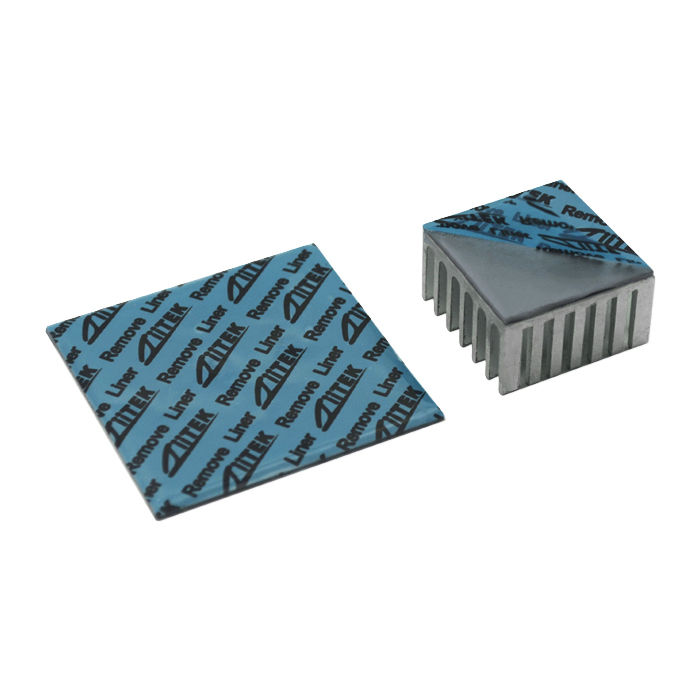

TIF540-20-11U series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Excellent thermal conductivity 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications:
> Cooling components to the chassis of frame
> CPU and GPU processors and other chipsets
> High-performance computing (HPC)
> Industrial equipment
> Network communication devices
> New energy vehicles
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
| Typical Properties of TIF540-20-11U Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.7 g/cc | ASTM D792 |
| thickness | 1.0mmT | ASTM D374 |
| Hardness (thickness＜1.0mm) | 27±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5 MHz | ASTM D150 |
| Fire rating | 94 V0 | UL (E331100) |
| Thermal conductivity | 2.0 W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
