| Products name: | High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet | Color: | Light Amber |
|---|---|---|---|
| Density: | 2.0g/cc | Tensile Strength(MPa): | 10 |
| Continuos Use Temp: | -45 to 160℃ | Thermal conductivity: | 1.3W/mK |
| Keywords: | Semiconductor Electrical Insulating Sheet | Polyimide Film Thickness(inch/mm): | 0.001(inch）/ 0.025mm |
| Application: | IGBT Mosfet |

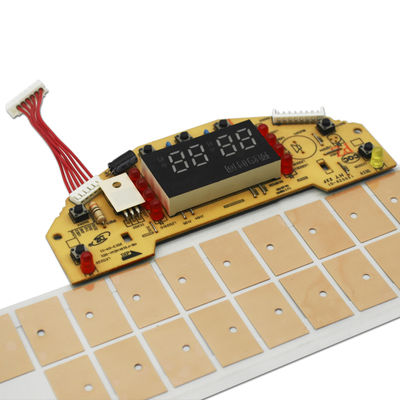

High-Performance Semiconductor Electrical Insulating Sheet Thermal Conductive Silicone Gasket Sil Pad For IGBT Mosfet
Products discription
TIS®800K series is a thermal silicone product featuring a ceramic-filled layer coated on a polyimide film, offering excellent thermal conductivity and heat transfer performance. The TIS®800K model is designed for screw-mounted applications on device openings, with the composite polyimide film providing superior dielectric insulation. Its soft thermal coating enhances gap-filling capability and improves handling during assembly.
Features:
>Relatively soft surface,good thermal conductivity
>High voltage insulation, low thermal resistance
>Tear-resistant and puncture-resistant
Applications:
>Power supplies and automotive battery packs
>Power semiconductor devices
>Audio-visual products
>Charging stations
| Typical Properties of TIS®800K series | ||||
| Product Name | TIS®806K | TIS®808K | TIS®810K | Test Method |
| Color | Light Amber | Visual | ||
| Polyimide Film Thickness(inch/mm) | 0.001"/0.025mm | ASTM D374 | ||
| Total Thickness | 0.006"/0.152mm | 0.008"/0.203mm | 0.010"/0.254mm | |
| Density (g/cc) | 2.0 | ASTM D297 | ||
| Tensile Strength (Mpa) | 10 | ASTM D412 | ||
| Recommended Operating Temperature (℃) | -45 to 160℃ | *** | ||
| Dielectric Breakdown Voltage (VAC) | 6500 | 7000 | 7500 | ASTM D149 |
| Dielectric Constant | 3.8 | ASTM D150 | ||
| Volume Resistivity(Ohm-cm) | 3.5X10¹³ | ASTM D257 | ||
| Flame Rating | 94 V0 | equivalent UL | ||
| Thermal conductivity | 1.3 W/mK | |||
Standard Thickness: 0.006" (0.152 mm), 0.008" (0.203 mm), 0.010" (0.254 mm)
For other thickness options, please contact us.
Standard Size: 10" x 100' (254 mm x 25.4 m).The TIS®800K series can be die-cut into various shapes for supply.
Packaging Details & Lead time
The packaging of silicone insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
