제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 5.0W 고품질 공장 도매 맞춤형 열 패드 열 갭 필러 절연 시트 실리콘 패드 LED CPU GPU MOS | 키워드: | 열 위성 방송 중계기 패드 |
|---|---|---|---|
| 열전도율: | 5.0 W/m-K | 구조 & 퇴비: | 세라믹으로 채워진 실리콘 엘라스토머 |
| 견본: | 무료 | 밀도: | 3.4 g/cm³ |
| 경도: | 20 버팀목 00 | 두께: | 이용 가능하 안에 두께 측정기를 변경합니다 |
| 애플리케이션: | LED CPU GPU MOS |
5.0W High Quality Factory Wholesale Customized Thermal Pad Thermal Gap Filler Insulation Sheet Silicone Pad For LED CPU GPU MOS
Products description

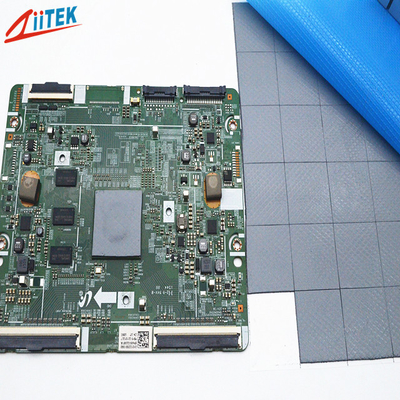

The TIF®800US thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 5.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
| Typical Properties of TIF®800US Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.4g/cc | ASTM D297 |
| Thickness range | 0.020"(0.500)~0.200"(5.0mm) | ASTM D374 |
| Hardness | 20 Shore 00 | ASTM 2240 |
| Operating temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5000 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ≥ 1.0X1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Outgassing (TML) | 0.55% | ASTM E595 |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 |
| 5.0 W/m-K | ISO 22007-2 | |
Products specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch(0.25mm).
Product Sizes: 8" x 16"(203mm x406mm)Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
