제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 맞춤형 열 패드 1.5W/MK 0.25mm-5.0mm 두께 ROHS UL LED 배터리 용 열 실리콘 전도 패드 | 견본: | 샘플 무료 |
|---|---|---|---|
| 신청: | LED 배터리 | 불꽃 평가: | UL 94 V-0 |
| 연속체는 온도를 사용합니다: | -45~200℃ | 경도: | 60 해안 00 |
| 열전도율 (Ｗ / 마크): | 1.5W/MK | 유전 상수: | 4.0mHz |
| 구조 & 퇴비: | 세라믹으로 채워진 실리콘 엘라스토머 | 키워드: | 열 실리콘 전도성 패드 |

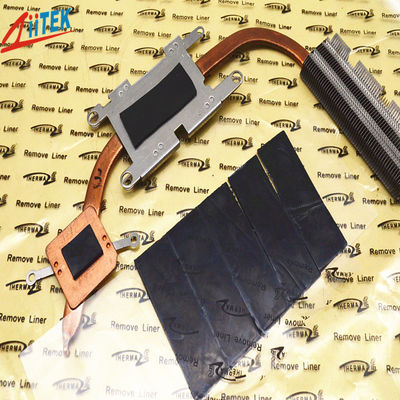

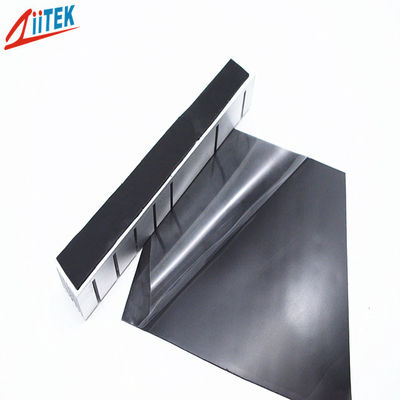

Custom Thermal Pad 1.5w/Mk 0.25mm-5.0mm Thickness RoHS UL Certified Thermal Silicone Conductive Pads For LED Battery
The TIF®100-01F is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®100-01F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive :1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LCD TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> CPU
> Memory Modules
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
| Typical Properties of TIF®100-01F Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.010"(0.25mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.3 g/cc | ASTM D792 |
| Hardness | 60 Shore 00 | ASTM 2240 |
| Operating Temp | -45 ~ 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 4.0MHz | ASTM D150 |
| Volume Resistivity | ≥2.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Thicknesses: 0.010"(0.25mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
