제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 핸드 헬드 휴대용 전자 장치를위한 프리미엄 소프트 1.5W/MK 실리콘 열 패드 | 구조 & 퇴비: | 세라믹으로 채워진 실리콘 엘라스토머 |
|---|---|---|---|
| 키워드: | 실리콘 써멀 패드 | 불꽃 평가: | UL 94 V-0 |
| 연속체는 온도를 사용합니다: | -40 내지 200C | 경도: | 20±5 버팀목 00 |
| 열전도율 (Ｗ / 마크): | 1.5W/MK | 유전 상수: | 2.9 마하즈 |
| 견본: | 샘플 무료 | 신청: | 휴대용 휴대용 전자 제품 |

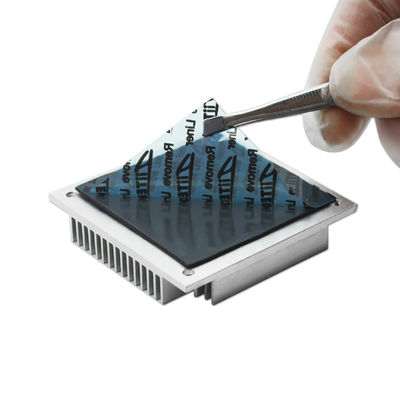

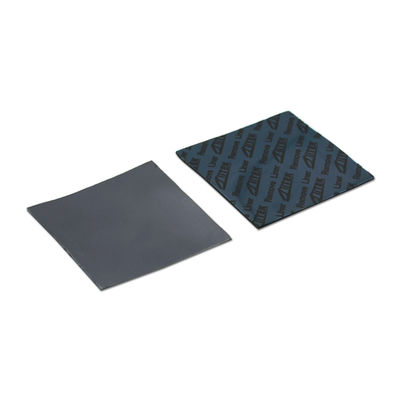

Premium Soft 1.5W/MK Silicone Thermal Pad For Handheld Portable Electronics
The TIF®100-01US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features:
> Good thermal conductive :1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LCD TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> CPU
> Memory Modules
> Audio and video components
> Power supply
> Heat pipe thermal solutions
> Memory Modules
| Typical Properties of TIF®100-01US Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 1.9 g/cc | ASTM D792 |
| Hardness | 20±5 Shore 00 | ASTM 2240 |
| Operating Temp | -40 ~ 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 2.9 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Thicknesses: 0.020"(0.5mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
