제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 전기 제품을 위한 다중 두께 공장 열 패드 패드를 전기적으로 분리 | 경도: | 10 해안 00 |
|---|---|---|---|
| 적용: | 전기 제품 열 방출 | 키워드: | 열 패드 |
| 두께: | 0.04인치~0.20인치/(1.0mm)~5.0mm) | 색상: | 회색 |
| 연속적인 사용 임시: | -45~200℃ | 견본: | 샘플 무료 |
| 열전도율: | 5.0W/m-k |

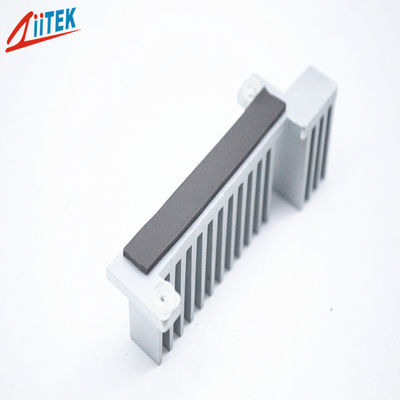

Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products
The TIF®100-50-11ES Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS complian
> UL recognized
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
| Typical Properties of TIF®500-50-11ES Series | ||||
| Property | Value | Test method | ||
| Color | Gray | Visual | ||
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | ||
| Thickness range(inch/mm) |
0.02"~0.03"/ (0.50mm)~(0.75mm) |
0.04"~0.20"/ (1.0mm)~(5.0mm) |
ASTM D374 | |
| Density | 3.3g/cm³ | ASTM D792 | ||
| Hardness | 10 Shore 00 | ASTM 2240 | ||
| Continuos Use Temp | -45 to 200℃ | ****** | ||
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | ||
| Dielectric Constant | 3.8 MHz | ASTM D150 | ||
| Volume Resistivity | ＞1.0 X1012 Ohm-meter | ASTM D257 | ||
| Flame rating | 94 V0 | UL E331100 | ||
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | ||
Product Specification
Standard Thickness: 0.02"(0.50 mm)~0.20” (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16" ×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseriesis available in custom shapes and various forms.For other thicknessesormore
information, please contact us.

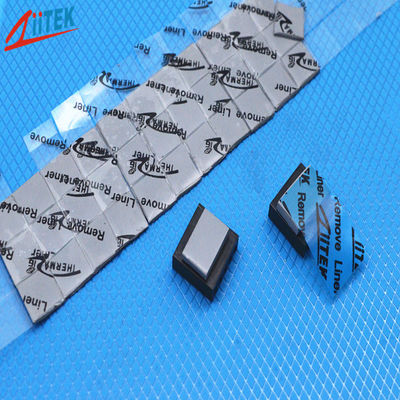

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
