| 제품 이름: | 통신 산업을 위한 좋은 열 분산 열 전도성 실리콘 젤 열 간격보충 젤 | 키워드: | 열전도도 젤 |
|---|---|---|---|
| 비중: | 3.25g/cc | 다이렉트릭 상수 @ 1MHz: | 7.7 |
| 전도성 있는 좋은 열식: | 5.0W/mK | 불꽃 평가: | UL 94 V-0 |
| 항복전압(V/mm): | ≥6000 | 색상: | 어두운 회색 |
| 적용: | 통신 산업 |

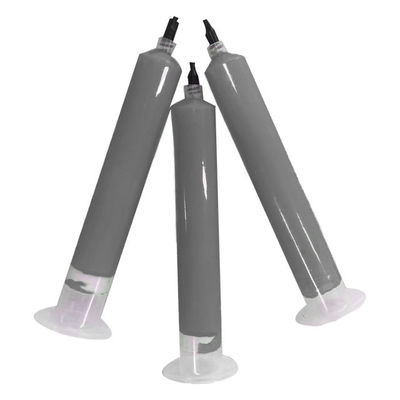

Good Heat Dissipation Thermal Conductive Silicone Gel Thermal Gap Filler Gel For Telecom Industry
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Products Description

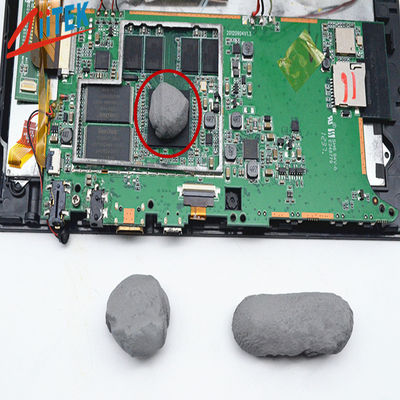

Ziitek TIF®050-11-1 is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF®050-11-1 is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Feature
> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties
Application
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment
| TIF®050-11-1 Typical Properties | ||
| Property | Value | Test method |
| Color | Dark Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | - |
| Density(g/cm³) | 3.25g/c | ASTM D792 |
| Thermal conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage (V/mm) | ≥6000 | ASTM D149 |
| Dielectric constant @1MHz | 7.7 | ADTM D150 |
| Flame Rating | V-0 | UL 94 |
| Volume resistivity(Ohm.cm) | 8.0 X 1013 | ASTM D257 |
Product Specification
30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
Custom packaging available for automation use. Please contact us for confirming.
