제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | AI 프로세서 AI 서버를 위한 우수한 방열 7.5W 실리콘 열 패드 | 어플리케이션: | AI 프로세서 AI 서버 |
|---|---|---|---|
| 색상: | 회색 | 경도: | 20 버팀목 00 |
| 키워드: | 실리콘 써멀 패드 | 밀도(g/m3): | 3.2 |
| 권장 작동 온도(°C): | -40 내지 200C | 절연 파괴 전압(V/mm): | ≥5500 |
| 열전도율: | 7.5W/m-K |

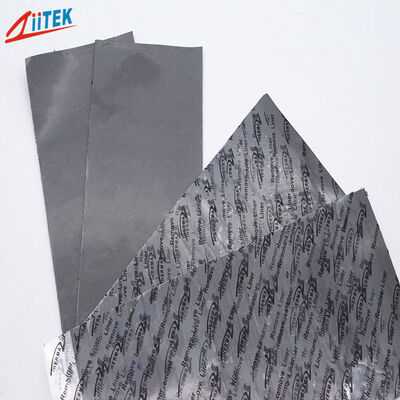

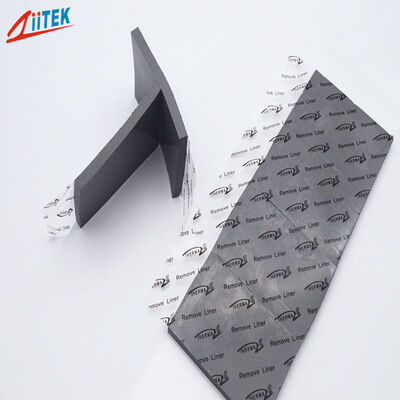

Good Heat Dissipation 7.5W Silicone Thermal Pad For AI Processors AI Servers
| Typical Properties of TIF®700PUS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| 0.50~0.75 | 1.0~5.0 | ||
| Hardness | 70 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 | |
| Volume Resistivity | ＞3.5 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
Company profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
