제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 고속 네트워크 및 AI 서버를 위한 매우 부드러운 저밀도 열 패드 | 색상: | 어두운 회색 |
|---|---|---|---|
| 두께 범위: | 0.25~5.0mm(0.010~0.20인치) | 경도: | 65 버팀목 00 |
| 열전도율: | 1.5W/mK | 구조 & 퇴비: | 세라믹으로 채워진 실리콘 엘라스토머 |
| 키워드: | 열 패드 | 신청: | 고속 네트워크 및 AI 서버 |

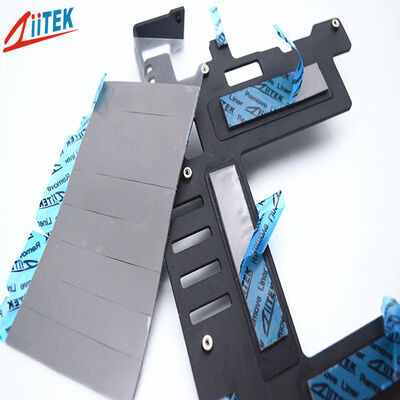

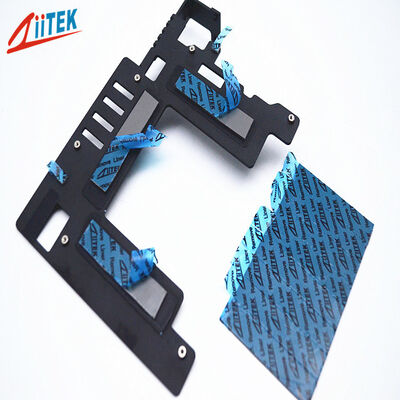

Ultra Soft Low Density Thermal Pad For High Speed Networks And AI Servers
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
TIS®100-15-11S-D Series is an innovative low-density thermal pad that offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and outstanding ease of use, delivering effective heat transfer and basicphysical protection for a wide range of electronic components while achieving lightweight performance.
Features:
> Low density
> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications:
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
> High Speed Networks And AI Servers
| Typical Properties of TIF®100-15-11S-D Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.0 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.5) |
0.030~0.200 (0.75~5.0) |
ASTM D374 |
| Hardness | 65 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 5.2 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity(W/m.K) | 1.5 | ASTM D5470 | |
| Fire rating | V-0 | UL 94 (E331100) | |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
