제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 컴퓨터 CPU/GPU 냉각을 위한 울트라 소프트 6.5W 열 전도성 갭 필러 패드 | 연속 사용 온도: | -45 200 ~ 200 ℃ |
|---|---|---|---|
| 열전도율 및 복합: | 6.5W/MK | 밀도: | 3.4g/cc |
| 경도: | 60/27 쇼어 00 | 색상: | 회색 |
| 두께: | 0.020"(0.5mm)~0.200"(5.0mm) | 건설: | 세라믹 충전 실리콘 엘라스토머 |
| 키워드: | 매우 부드러운 열 간격 패드 | 애플리케이션: | 컴퓨터 CPU/GPU 냉각 |

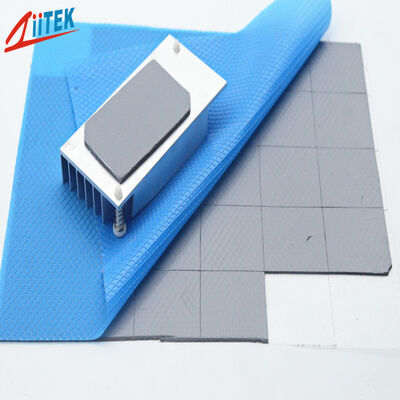

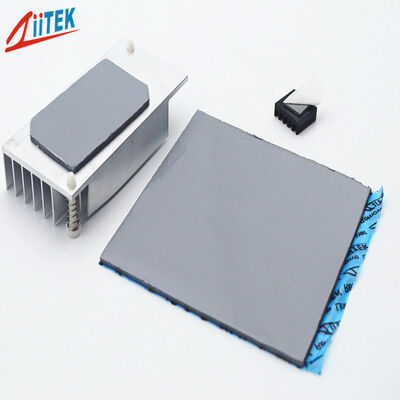

Ultra-Soft 6.5W Thermally Conductive Gap Filler Pads For Computer CPU/GPU Cooling
TIF®700NU is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.
Features:
> Higt thermal conductivity 6.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®700NU Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.0~5.0) | ||
| Hardness | 60 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.5 W/m-K | ASTM D5470 | |
| 6.5 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25mm)
Standard Size:16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
