제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 전자 부품 5G 항공우주 AI를 위한 우수한 열 전도성 실리콘 기반 열 갭 패드 | 애플리케이션: | 전자부품 5G 항공우주 AI |
|---|---|---|---|
| 두께: | 0.010 "(0.25mm) ~ 0.200"(5.0mm) | 열전도율: | 4.0W/m-K |
| 키워드: | 열적 갭 패드 | 경도: | 65/20 쇼어 00 |
| 밀도: | 3.2g/cm3 | 색상: | 짙은 회색 |
| 추천된 작동 온도: | -40 내지 200C |

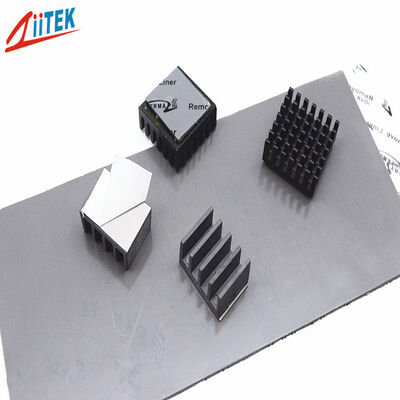

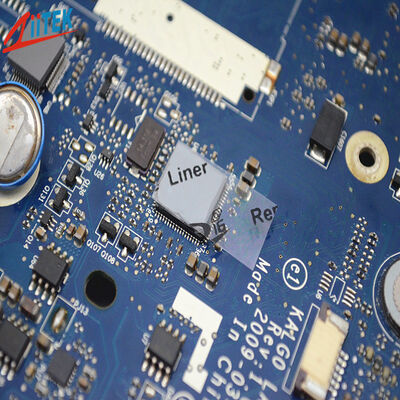

Good Thermal Conductivity Silicone-Based Thermal Gap Pad For Electronic Components 5G Aerospace AI
The TIF®100-40-11US Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit.It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> Good thermal conductive: 4.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
> Cpu heat sinking
> High speed mass storage drives
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Home appliance industry
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
| Typical Properties of TIF®100-40-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @ 1MHz | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 4.0W/m-K | ASTM D5470 | |
| 4.0W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)
with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
