제품 상세 정보:
|

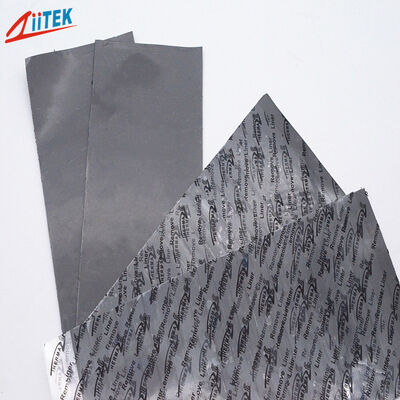

| 제품명: | 자동차 전자공학의 열 전달을 위한 열 전도성 6.0W/mK를 갖춘 열 갭 필러 실리콘 열 패드 | 열전도율 및 복합: | 6.0W/mK |
|---|---|---|---|
| 비중: | 3.4g/cm3 | 건설: | 세라믹 충전 실리콘 엘라스토머 |
| 색상: | 다크 그레이 | 연속 사용 온도: | -40 내지 200C |
| 경도: | 65/27 쇼어 00 | 키워드: | 실리콘 열 패드 |
| 애플리케이션: | 자동차 전자 장치의 열 전달용 |
Products description
The TIF®100-60-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features:
> Good thermal conductive: 6.0 W/mK
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications:
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
| Typical Properties of TIF®100-60-11U Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.0 W/m-K | ASTM D5470 | |
| 6.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.
