제품 상세 정보:
|
| 제품명: | 소형 전자 조립품에 열 전달, 절연 및 밀봉 특성을 제공하는 열 갭 필러 | 두께: | 0.010"~0.200"(0.25~5.0mm) |
|---|---|---|---|
| 키워드: | 열 갭 필러 | 경도: | 65/45 쇼어 00 |
| 건설: | 세라믹 충전 실리콘 엘라스토머 | 밀도: | 3.3g/cm³ |
| 애플리케이션: | 소형 전자 조립품의 열 전달 및 절연 및 밀봉 특성 | 열전도율: | 5.0W/mK |

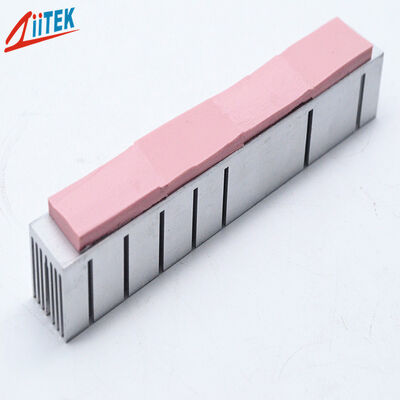

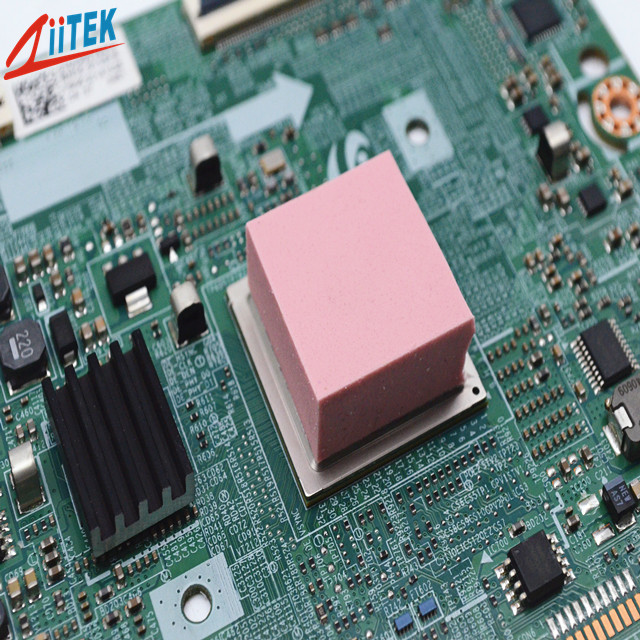

The TIF®100-50-50S Series is a well-balanced, general-purpose thermal pad offering high thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
| Property | Value | Test Method |
|---|---|---|
| Color | Pink | Visual |
| Construction | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 3.3 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 / 0.030~0.200 0.25~0.50 / 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 45 | ASTM 2240 |
| Operating Temperature (℃) | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥ 5500 | ASTM D149 |
| Dielectric Constant @1Mhz | 7.5 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | ≥1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m-K) | 5.0 | ASTM D5470 / ISO22007 |
| Fire Rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm × 406 mm)
Component Codes:
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time:
Quantity: 5,000 pieces
Estimated Time: To be negotiated
