제품 상세 정보:
|
| 제품명: | 2.0W/mK 청색 열 전도성 패드 전자 방열 시스템의 낮은 응력 적용을 위한 유연한 압축성 실리콘 | 키워드: | 열전도성 패드 |
|---|---|---|---|
| 색상: | 파란색 | 경도: | 65/35 쇼어 00 |
| 열전도율: | 2.0W/m-K | 비중: | 2.5 g/cm3 |
| 권장 작동 |온도(%22C): | -40 내지 200C | 항복전압(V/mm): | ≥5500VAC |
| 애플리케이션: | 전자 방열 시스템의 저응력 응용 분야용 |
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste, thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel, silicone foam, silicone-free thermal pads etc. We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

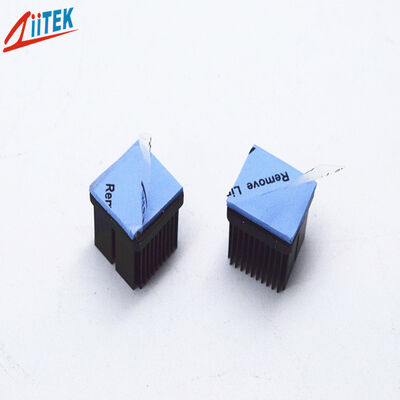

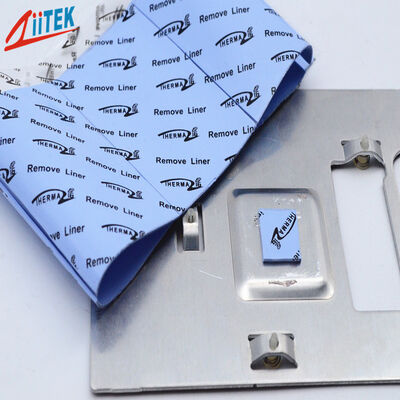

TIF®100-20-05E Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
| Property | Value | Test method |
|---|---|---|
| Color | Blue | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.5 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 (0.25~0.50) | (0.75~5.0) |
ASTM D374 |
| Hardness (Shroe 00) | 65 | 35 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @ 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | ＞1.0X10¹² Ohm-meter | ASTM D257 |
| Flame rating | V-0 | UL 94 (E331100) |
| Thermal conductivity | 2.0 W/m-K 2.0 W/m-K |
ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
A: All the data in the sheet are actual tested. Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
A: It depends on the watts of power source, ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
A: Yes, welcome to custom orders. Our custom elements including dimension, shape, color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order, please kindly offer a drawing or leave your custom order information.
