제품 상세 정보:
|

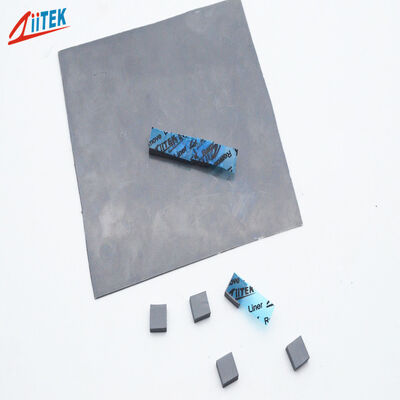

| 제품명: | 주문 열 패드 2.0w/mk 0.25mm-5mm 간격 RoHS UL는 지도된 건전지를 위한 열 실리콘 전도성 패드를 증명했습니다 | 열전도율: | 2.0W/mk |
|---|---|---|---|
| 밀도: | 2.8 g/cm3 | 애플리케이션: | LED 배터리 |
| 색상: | 회색 | 권장사용온도(℃): | -40 내지 200C |
| 경도: | 65/60 해안 00 | 키워드: | 열 실리콘 전도성 패드 |
The TIF®100-20-10F Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat efficiently, and offers mechanical support for stacked components, resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.
Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, and more.
| Property | Value | Test Method |
|---|---|---|
| Color | Blue | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.8 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 60 | ASTM 2240 |
| Recommended Operating Temperature (℃) | -40 to 200 | *** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1Mhz | 4.7 | ASTM D150 |
| Volume Resistivity (Ohm-cm) | ＞1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m-K) | 2.0 | ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time:
Quantity: 5000 pieces
Estimated Time: To be negotiated
Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years and is a high-tech enterprise integrating R&D, production, and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province, and Vietnam, we ensure stable and reliable global delivery capacity.
We specialize in thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. Our core products are widely recognized by the market.
Our products have passed ISO9001 and IATF16949 certification and meet RoHS/UL standards, making them suitable for new energy, 5G, data center, automotive electronics, and other fields.
