제품 상세 정보:
|
| 제품명: | 전자 장치의 열 관리 및 장기 작동 안정성을 보장하는 저휘발성 열 갭 필러 패드 | 건설: | 세라믹 충전 실리콘 엘라스토머 |
|---|---|---|---|
| 키워드: | 열 위성 방송 중계기 패드 | 경도: | 65/40 해안 00 |
| 권장 작동 온도(°C): | -40 내지 200C | 항복 전압: | ≥5500 |
| 견본: | 샘플 무료 | 열전도율 (Ｗ / 마크): | 3.0W/mK |
| 화염 등급: | UL 94 V-0 | 애플리케이션: | 전자 기기 |

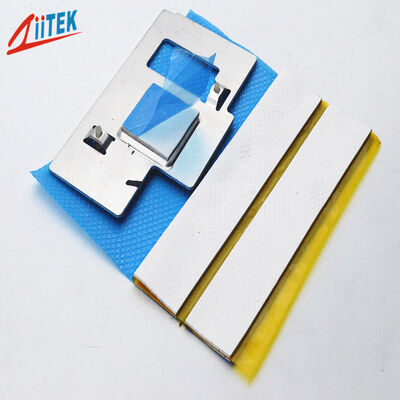

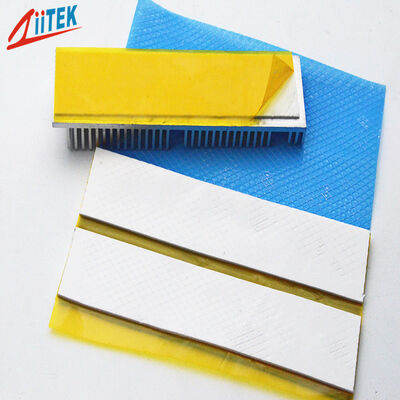

The TIF®100L 3040-06 Series is an ultra-low silicon oxygen volatilization thermal pad designed specifically for the thermal management needs of optical and high-precision electronic devices. This material balances efficient thermal conductivity with extremely low precipitation of condensable volatile substances, effectively avoiding pollution to sensitive optical components and precision circuits.The material features excellent flexibility and elasticity, enabling it to fully fill micro gaps between heating interfaces and heat dissipation structures. This significantly reduces contact thermal resistance, improves thermal conductivity efficiency, and ensures the reliability and service life of electronic components in long-term operation.
| Property | Value | Test Method |
|---|---|---|
| Color | White | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 3.0 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 40 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Volume Resistivity (Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Flame rating | V-0 | UL 94 (E331100) |
| ∑ZD3-D10 (PPM) | ＜100 | GC-MS |
| Thermal conductivity (W/m-K) | 3.0 | ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm×406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time:
Quantity: 5000 pieces
Estimated Time: To be negotiated
