제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | ROHS 실리콘 열도 전도성 패드 GPU 열 패드 방열판 5.0W/MK 용 열 갭 패드 | 두께: | 0.02 ~ 0.2INCH (0.50 ~ 5.0mm) |
|---|---|---|---|
| 신청: | 라디에이터의 열 소산 구조 | 고장 전압: | ≥5500VAC |
| 유전 상수: | 5.5 마하즈 | 구조 & 퇴비: | 세라믹으로 채워진 실리콘 엘라스토머 |
| 키워드: | 열 패드 | 색상: | 회색 |
| 경도: | 12 해안 00 |

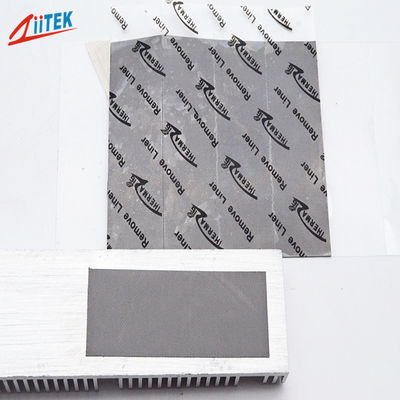

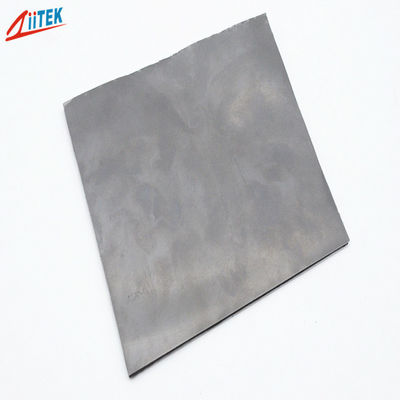

RoHS Silicone Thermal Conductive Pad GPU Thermal Pads Thermal Gap Pad For Heat Sink 5.0W/MK
The TIF®800ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
> Good thermal conductive:5.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> High compliance adapts to various pressure application environments
> Available in different thickness options
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps
| Typical Properties of TIF®800ES Series | ||
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness | 0.020"(0.5mm)~0.200"(5.0MM) | ASTM D374 |
| Specific Gravity | 3.3g/cc | ASTM D792 |
| Hardness | 12 Shore 00 | ASTM 2240 |
| Operating Temp | -40 to 200℃ | ****** |
| Dielectric Breakdown Voltage(V/mm) | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 5.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0x1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 -V0 | UL E331100 |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 |
Products specificatrion
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm) with increments of 0.01 inch (0.25 mm).
Product Sizes: 8" x 16"(203mm x406mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided / Double-sided adhesive).
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
