제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 전기 자동차를 위한 실리콘 기반 열 인터페이스 재료 8.5W 부드러운 열 패드 | 색상: | 다크 그레이 |
|---|---|---|---|
| 열전도율: | 8.5W/MK | 경도: | 35/20 쇼어 00 |
| 밀도: | 30,5g/cm3 | 항복 전압(V/mm)): | ≥5500 |
| 화염 등급: | 94-V0 | 키워드: | 부드러운 열 패드 |
| 애플리케이션: | 전기 자동차 |

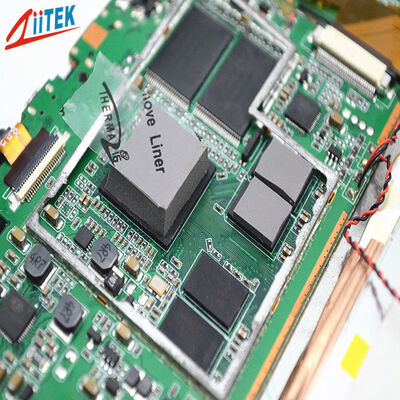

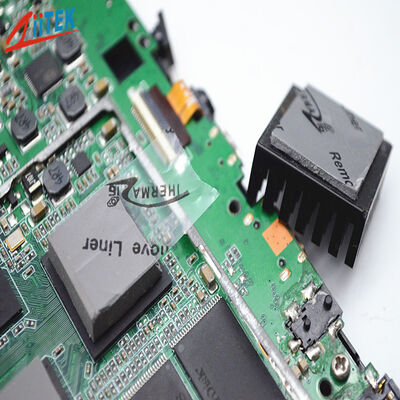

Silicone Based Thermal Interface Material 8.5W Soft Thermal Pad For Electric Vehicle
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIF®100-85-11US Series is a thermal pad designed specifically for environments sensitive to extreme mechanical stress. It combines excellent thermal conductivity with an almost fluid-like extreme softness, ensuring perfect contact interface fillng even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior heat dissipation solutions and physical protection for the most delicate electronic components.
Features
> High thermal conductivity
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Notebook
> Power supply
> Heat pipe thermal solutions
| Typical Properties of TIF®100-85-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.5 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.012~0.020 | 0.030~0.200 | ASTM D374 |
| (0.30~0.50) | (0.75~5.00) | ||
| Hardness | 35 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 8.5 | ASTM D5470 | |
| 8.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us.
4. We will reply you as soon as possible with Email or online.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
