제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 전자 부품 IC, CPU, MOS를 위한 우수한 열 전도성 열 그리스 열 페이스트 | 색상: | 회색 |
|---|---|---|---|
| 구조 & 퇴비: | 금속 산화물/실리콘 오일 | 밀도: | 2.3g/cm³ |
| 열전도율: | 5.0W/mK | 열 임피던스((%22C-in²/W) @30psi): | 0.015 |
| 키워드: | 열 페이스트 | 권장 작동 온도: | -40 ~ 200 200 |

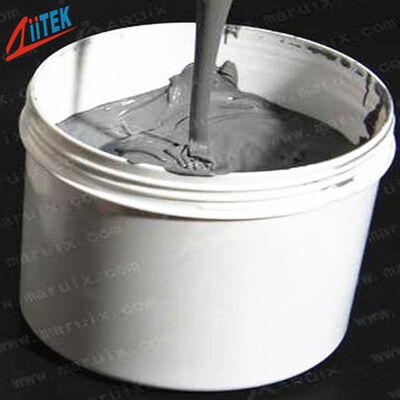

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS
TIG®780-56 Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.
Features
> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements

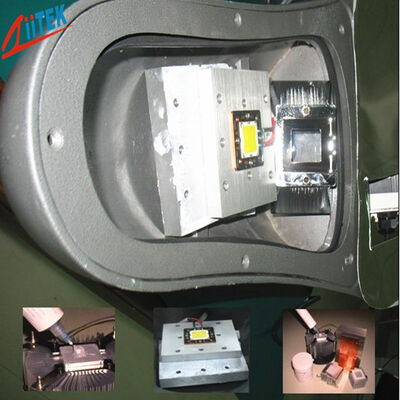

Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
| Typical Properties of TIG®780-50HP Series | ||
| Property | Value | Test Method |
| Color | Gray | Visual |
| Construction &Compostion | Metal oxide / Silicone oil | Ziitek Test Method |
| Density | 2.30 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Bond line Thickness (mm) | 0.008 | ASTM D374 |
| Thermal Impedance (℃·in²/W) @30 psi | 0.015 | ASTM D5470 |
| Thermal Impedance (℃·in²/W) @50 psi | 0.012 | ASTM D5470 |
| Recommended Operating Temp | -40℃ to 200℃ | ***** |
| Viscosity(mPa.s) | 200000 | GB/T 10247 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
Company profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
