제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 반도체 자동 실험실 장비를 위한 좋은 열 전도성 실리콘 기반 열 전도성 페이스트 | 색상: | 다크 그레이 |
|---|---|---|---|
| 건설 및 구성: | 세라믹 실리콘 소재 | 밀도: | 3.25g/cm3 |
| 열전도율: | 5.0W/mK | 다이렉트릭 상수 @ 1MHz: | 7.7 |
| 키워드: | 열전도성 페이스트 | 화염 등급: | UL 94 V-0 |
| 항복전압(V/mK): | ≥6000 |

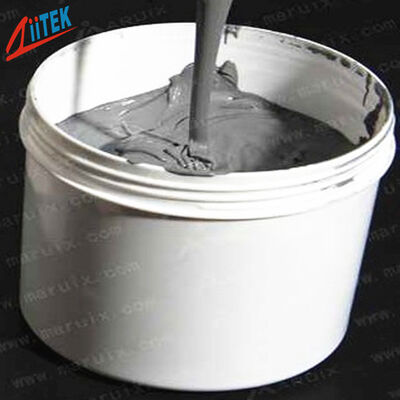

Good Thermal Conductivity Silicone-Based Thermal Conductive Paste For Semiconductor Automatic Laboratory Equipment
TIF®050-11P is a thermally conductivepaste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.
Features
>Good thermal conductivity
> Low stress, protect sensitive components.
> Strong plasticity,good stability
> Superior dielectric properties
Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic
> Laboratory equipment
| Typical Properties of TIF®050-11P Series | ||
| Property | Value | Test Method |
| Color | Dark Gray | Visual |
| Construction &Compostion | Ceramic filled silicone material | Ziitek Test Method |
| Density | 3.25 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage(V/mK) | ≥6000 | ASTM D149 |
| Dielectric constant @ 1MHz | 7.7 | ASTM D150 |
| Volume resistivity(Ohm·cm) | 8.0x1013 | ASTM D257 |
| Viscosity(mPa.s) | V-0 | UL94 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
